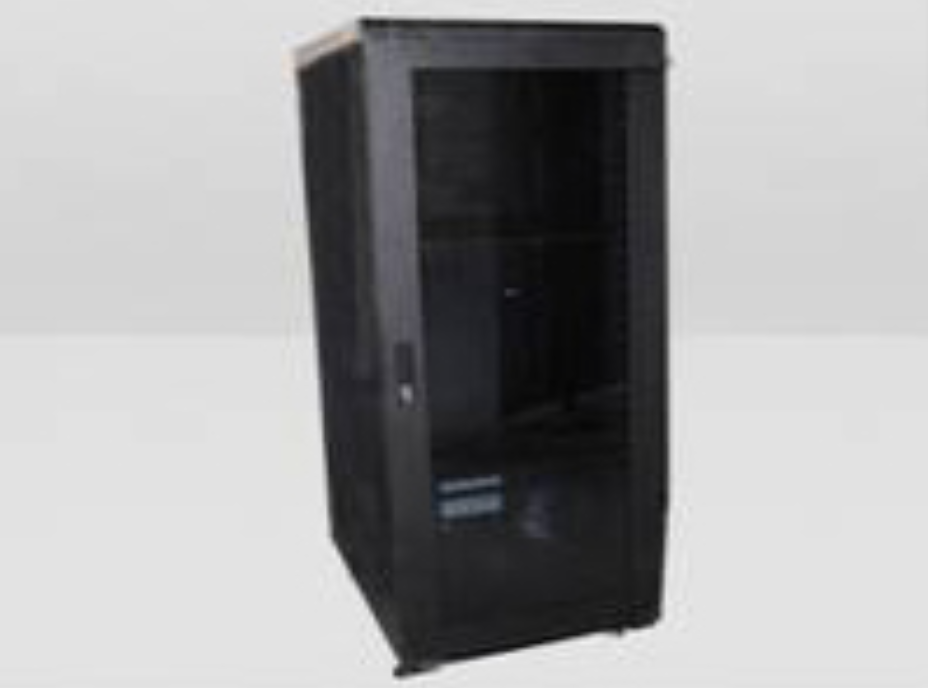

Network cabinet

Product Name: Standard Cabinet

Standard: Compliant with ANSI/EIA RS-310-D and compatible with ETSI standards;

Features:

1. Simple structure, convenient operation and installation, exquisite craftsmanship, and precise dimensions;

2. Conventional front door glass and rear door steel plate, can also be front and rear mesh door, easily removable left and right side doors, and front and rear door cabinet lower wiring for construction convenience. The cabinet upper part is equipped with circular ventilation holes;

3. It is possible to install casters and support feet simultaneously;

4. Standard cabinet configuration: 2 cooling fans, 2 shelves, 1 socket board (to be determined), matching installation screws (server cabinet configuration: 4 cooling fans, 2 shelves, 1 socket board (to be determined), matching installation screws

5. Material: Made of SPCC high-quality cold-rolled steel plate;

6. Cabinet thickness: 1.5mm for columns and pallets, 1.2mm for front doors, and 1.0mm for others;

7. Accessories: 4 casters, 4 supporting feet, matching M6 screws, keys, installation instructions;

8. Surface treatment: degreasing, acid washing, phosphating, electrostatic spraying;

9. Load capacity: Static load of 500KG, with each layer of pallets reaching 100KG;

10. Colors: black, gray, gray white, computer colors can be selected.

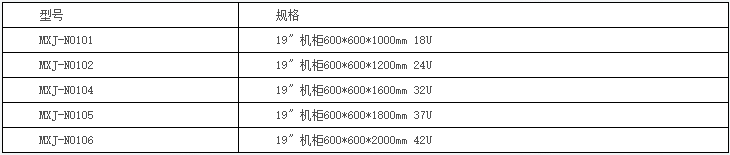

产品规格：

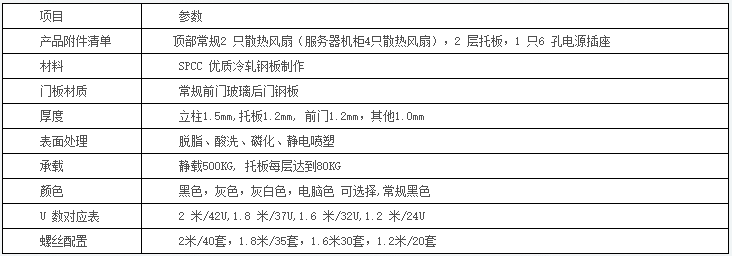

常规订货信息：
